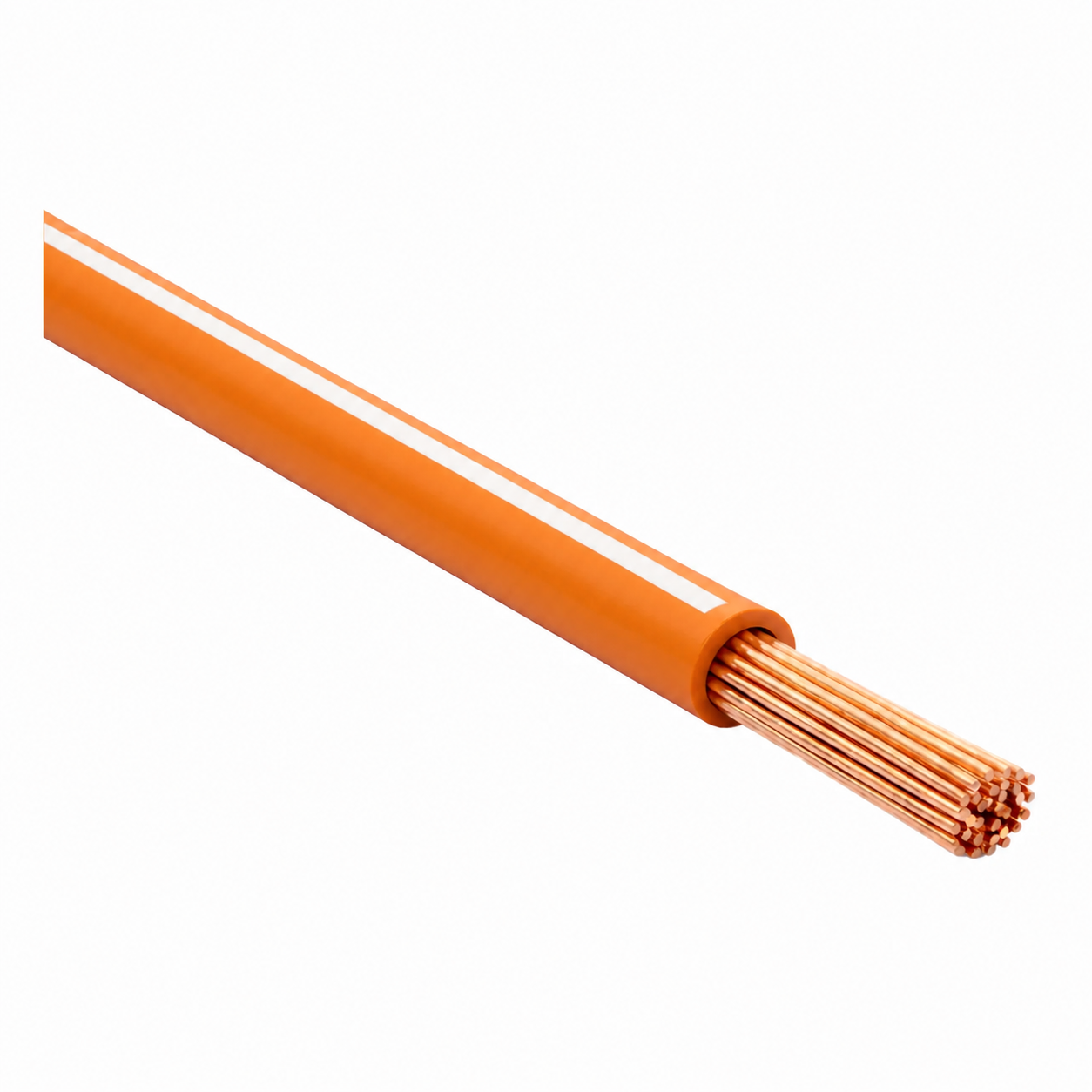

TXL SAE J1128 Single-Core Automotive Wire 22 AWG 100m (328ft) - Orange / White

The TXL SAE J1128 Single-Core Automotive Wire, 22 AWG, 100m Reel is now available in an Orange / White tracer finish, alongside the existing solid colour options in this range.

This Thin Wall Extra Low (TXL) single-core automotive wire conforms to SAE J1128 and uses a cross-linked polyethylene (XLPE) insulation that is thinner than the GXL or SXL equivalents, making it ideal for space-critical applications where reduced weight and diameter are priorities. The halogen-free construction is supplied on a 100m reel, with the orange/white tracer colourway helping with quick circuit identification in complex harnesses.

Features & Benefits:

• Manufactured to SAE J1128 TXL standard
• 22 AWG stranded copper conductor, plain or tinned
• Cross-linked polyethylene (XLPE) insulation, halogen-free
• Minimum insulation thickness of 0.28 mm, maximum cable diameter 1.7 mm
• Rated voltage up to 60V
• Operating temperature range of −40°C to +125°C (3000h endurance)
• Orange / White tracer colourway for easy circuit identification

Applications include:

• Automotive wiring harnesses
• Trucks, buses and commercial vehicles
• Agricultural and construction machinery
• Marine and off-highway equipment
• General low-voltage vehicle and industrial wiring
