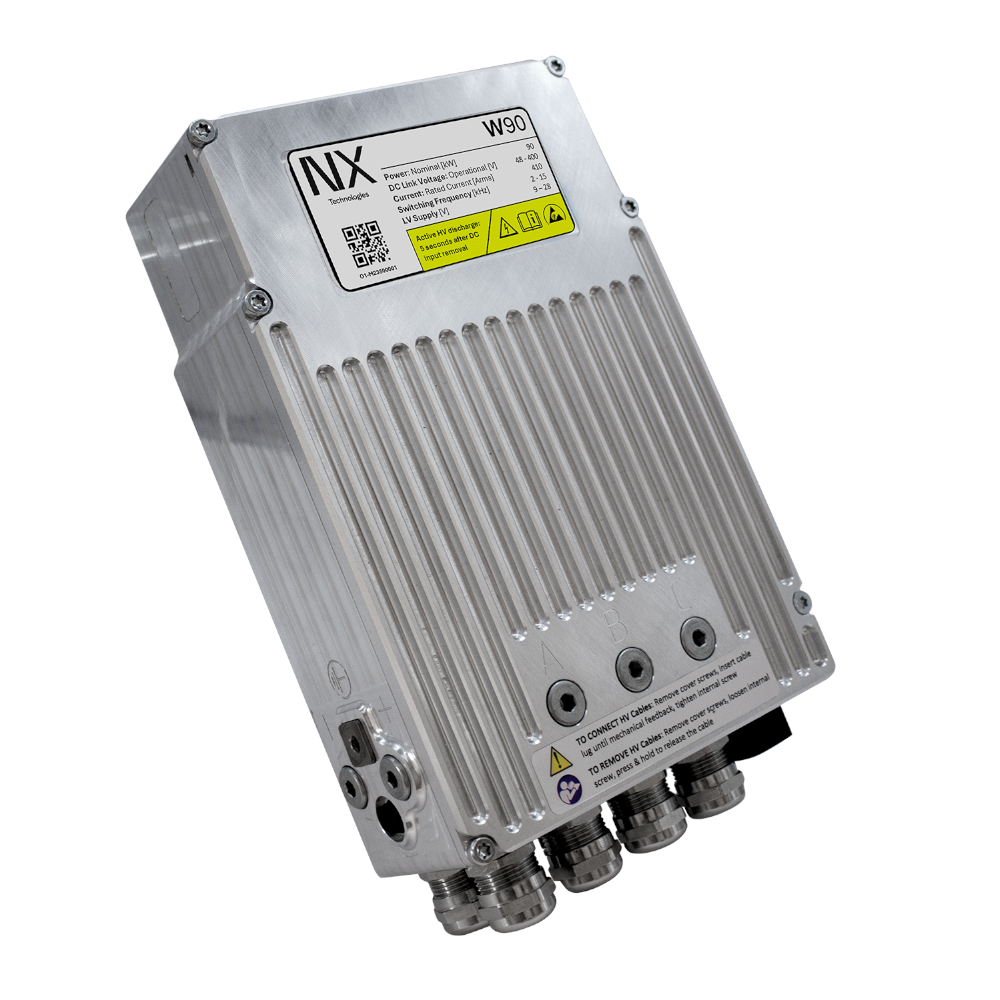

NX Technologies W90 AC Motor Controller, 48-400V, 410A, 90kW (Nominal)

NX Technologies' W90 90kW continuous power motor controller

⚠️ Liquid cooling required — see details below.

Features & benefits:

• 3.5kg.
• 270x160x65 mm.
• Liquid cooled — 90kW continuous rating requires active coolant flow (8 l/min, 50:50 water/glycol). Cooling interface: Normaquick PS3 NW6 fittings (available separately).
• Over Voltage protection: 440V
• Rated Current: 410 Arms
• Switching Frequency: 2-15 kHz.
• Low Voltage supply: 9-28V.
• Position sensor: Resolver, Absolute Encoder, Incremental Encoder, XMR, BiSS, Sensor-less.
• Temperature sensor: NTC10k, PT1000. Can be configured for other sensors upon request.
• Features the Triple core second generation 'Infineon Aurix' processor with 300Mhz capacity.
• MISRA C compliant
• EVITA HSM ready

Applications include:

• E-mobility.
• Plant, Construction & agriculture.
• Scooters, Karts, FLTs & other material handling.
• Marine, riverboats.
• Hybridisation.
• Cleaning machines.
• Hydraulic & pneumatic pump drives.
