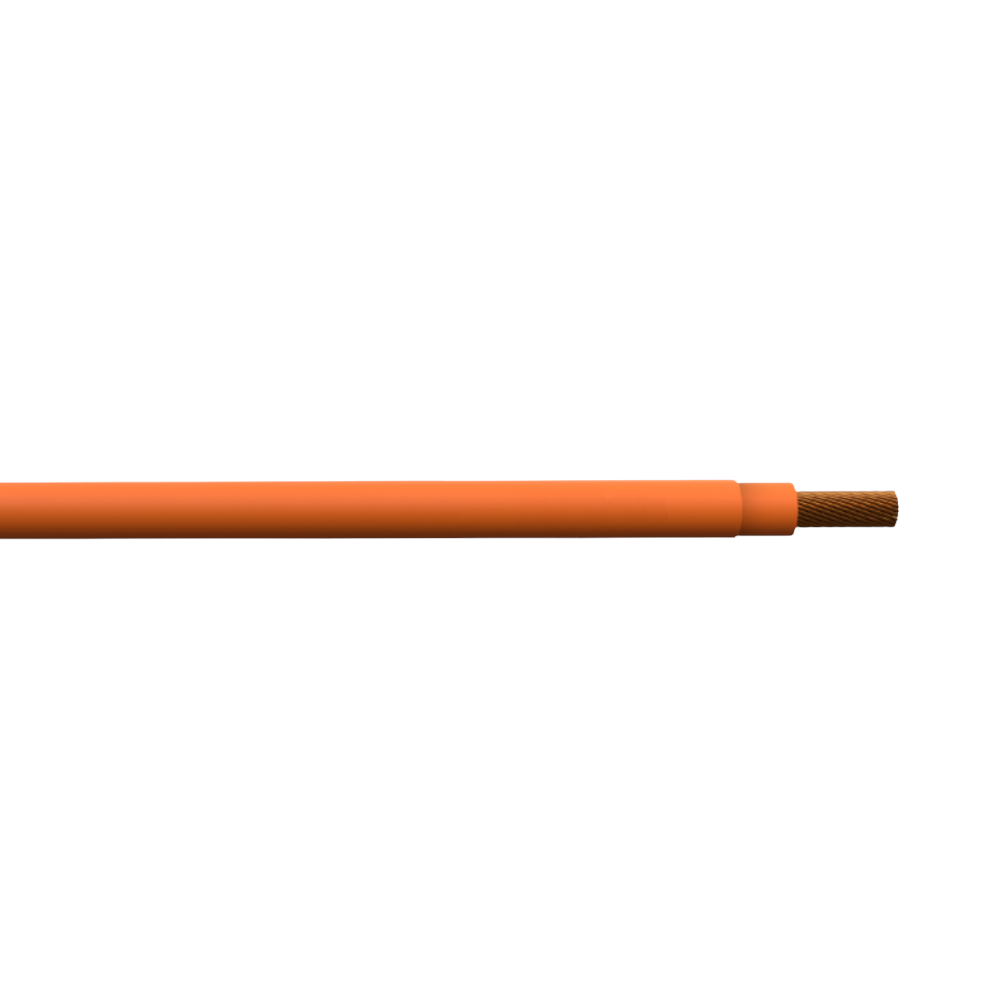

High Temperature Silicon Rubber single core un-shielded (Coroflex FHL2G alternative A) 2.5mm²

Alternative to FHL2G type, high-temperature silicone rubber single copper core un-shielded 2.5 mm² orange cable for e-mobility high-voltage applications. Price quoted is per metre. Contact us for further information.

Features & benefits:

• Operating temperature: –40°C to +200°C (3000 h).
• Voltage rating:
  • 600 V AC / 1000 V DC (LV 216-1).
  • 1000 V AC / 1500 V DC (ISO 19642-5).
• Test voltage: eff. 8.0 kV spark test.
• Minimum bending radius: 3 × D (static).
• Conductor DC resistance: 7.6 mΩ/m.
• Insulation material: High-temperature silicone rubber, thick-wall.
• Halogen-free, talc-free.
• Flame retardant.
• Excellent flexibility.
• Very good performance at high temperatures.
• Good resistance to UV, humidity, and aggressive chemical environments.
• Material-related limited resistance to sulfuric acid (ISO 19642-2:2019 §6.4.10)

Applications:

• Electric vehicle (EV) and hybrid high-voltage auxiliary circuits.
• Battery system wiring.
• High-voltage internal routing where shielding is not required.
• Off-highway, commercial, and industrial e-mobility systems.
• Inverter, converter, PDU and HV junction box connections.
