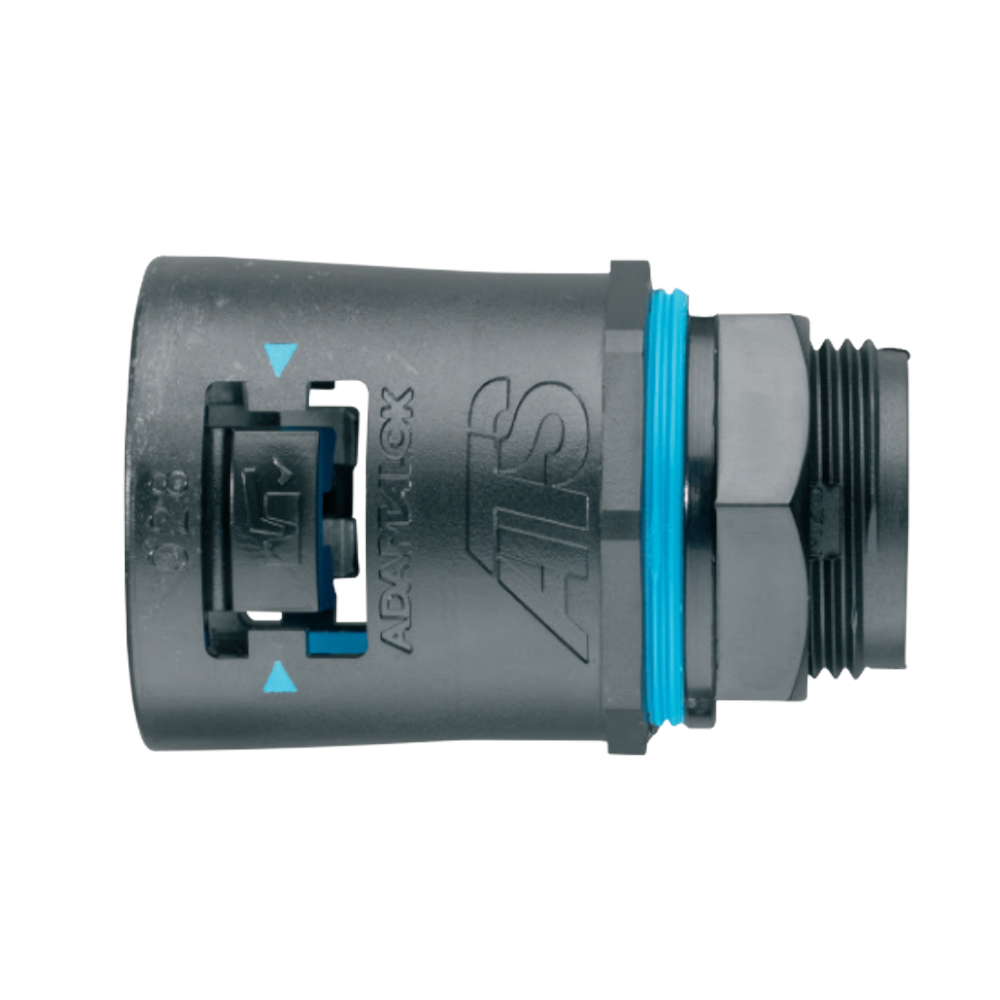

Harnessflex HTS16/M16/A Fast-Fit Type A straight bulkhead fitting - Black

ABB Harnessflex HTS16/M16/A Fast-Fit Type A Straight Bulkhead Fitting — Black

Straight bulkhead panel fitting for passing NC Harnessflex conduit through a panel or bulkhead. Features a M16 metric thread for secure panel mounting with the corresponding Harnessflex lock nut.

Features & benefits:

• Fast-Fit design — conduit snaps in without tools
• Suitable for passing conduit through panels, bulkheads, and enclosures
• IP66/IP69K rated when used with appropriate conduit and fittings
• Compatible with Harnessflex slit and unslit conduit
• Operating Temperature: -40°C to +120°C
• UV resistant polyamide (Nylon) construction, Black
• CE Mark to the Low Voltage Directive
• RoHS Compliant to 2011/65/EU
• Conforms with End of Life Vehicle Directive (ELV) EU2000/53/EC

Applications include:

• Harness manufacturers
• Agricultural vehicles
• Construction vehicles
• Engine manufacturers
• Truck & bus manufacturers
• Tanker & trailer manufacturers
• Specialist vehicle components
• Military vehicles
