  • Harnessflex CI12-AT4PL Ampseal 4-Way connector to NC12 conduit interface - Black
1 1

Harnessflex CI12-AT4PL Ampseal 4-Way connector to NC12 conduit interface - Black

Harnessflex CI12-AT4PL Ampseal 4-Way connector to NC12 conduit interface - Black

HEI.001.023.182

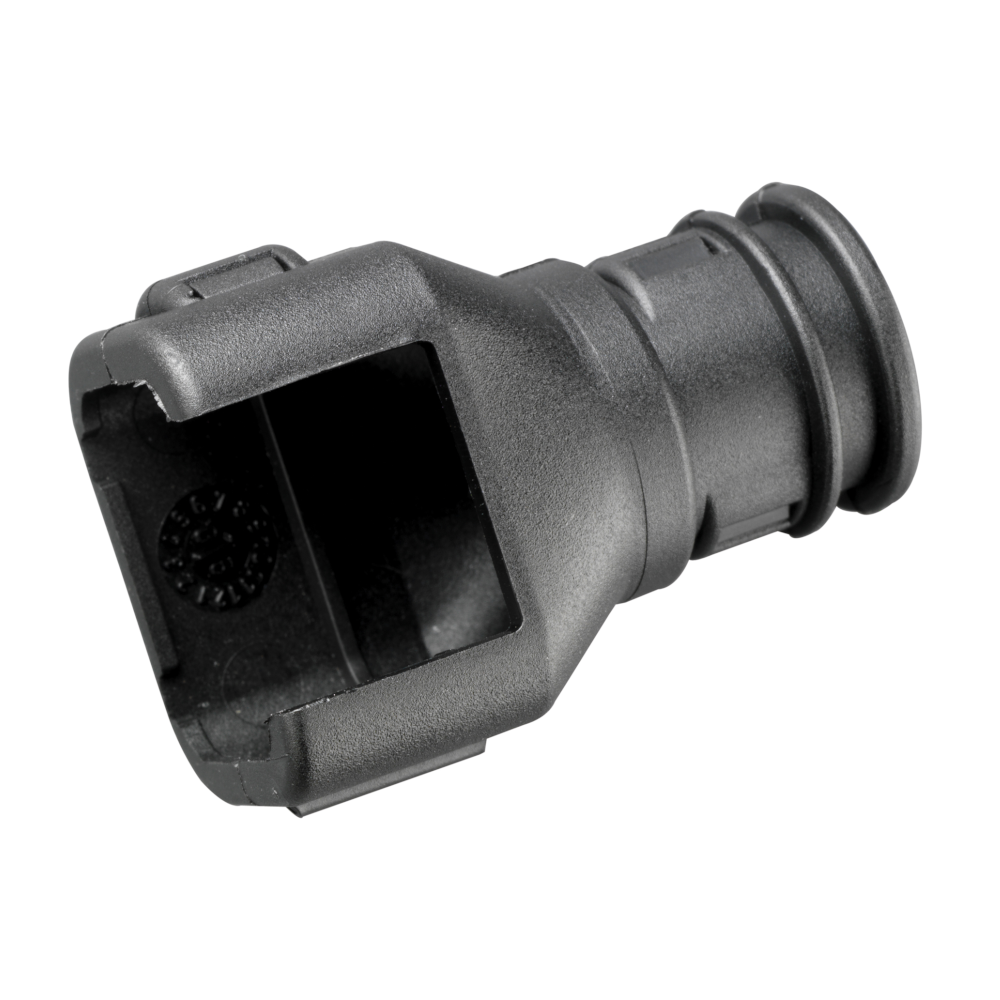

ABB Harnessflex CI12-AT4PL Straight Conduit Connector Interface

Straight back shell connector interface for TE Ampseal 16 connector, connecting Harnessflex conduit directly to the rear of the connector. Conduit size: NC12/NW10.

Features & benefits:

  • Designed to snap together over Harnessflex slit and unslit conduit, maintaining maximum conduit bore.
  • CE Mark to the low voltage directive.
  • RoHS Compliant to 2011/65/EU.
  • Conforms with end of life vehicle directive (ELV) EU200/53/EC.
  • Operating Temperature -40 to 120 Degrees Celsius.
  • Very High UV Protection.
  • IP40 rated.
  • Polyamide (Nylon), Black.

Applications include:

  • Harness manufacturers.
  • Agricultural vehicles.
  • Construction vehicles.
  • Military vehicles.
  • Engine manufacturers.
  • Truck & bus manufacturers.
  • Tanker & trailer manufacturers.
£1.12 GBP
£1.12 GBP
Sale Sold out

Price excluding tax. If ex stock, subject to prior sale. Carriage calculated at checkout.

Please contact us for competitive pricing on larger orders and for product installation support. International shipping available via special arrangement.

Low stock: 2 left

Country of Origin: Hungary

EAN: 5020963049637

Alt Part Number: 7TCA298010R0293
