Harnessflex CI12-AS3 Connector Interface AMP SuperSeal 2

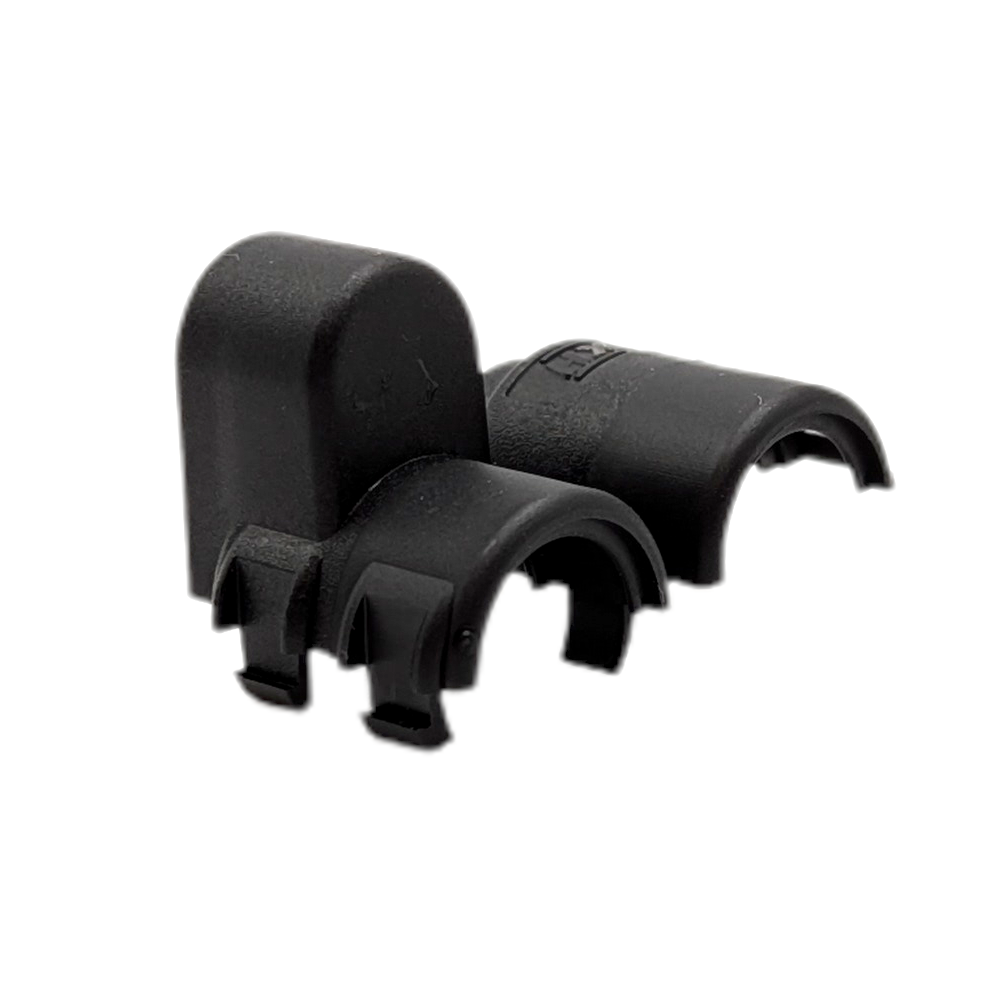

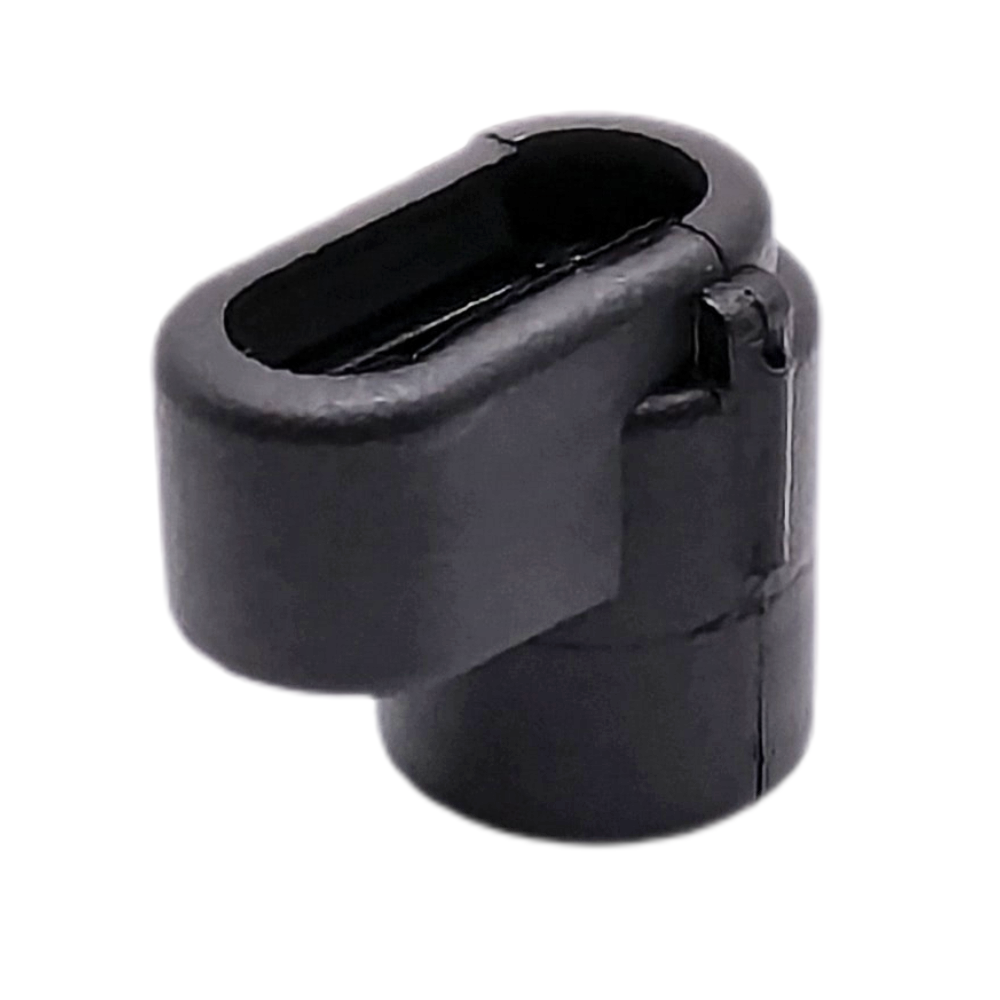

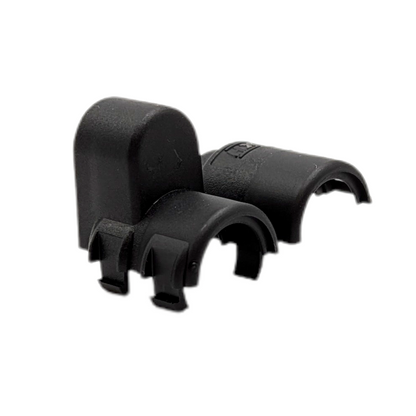

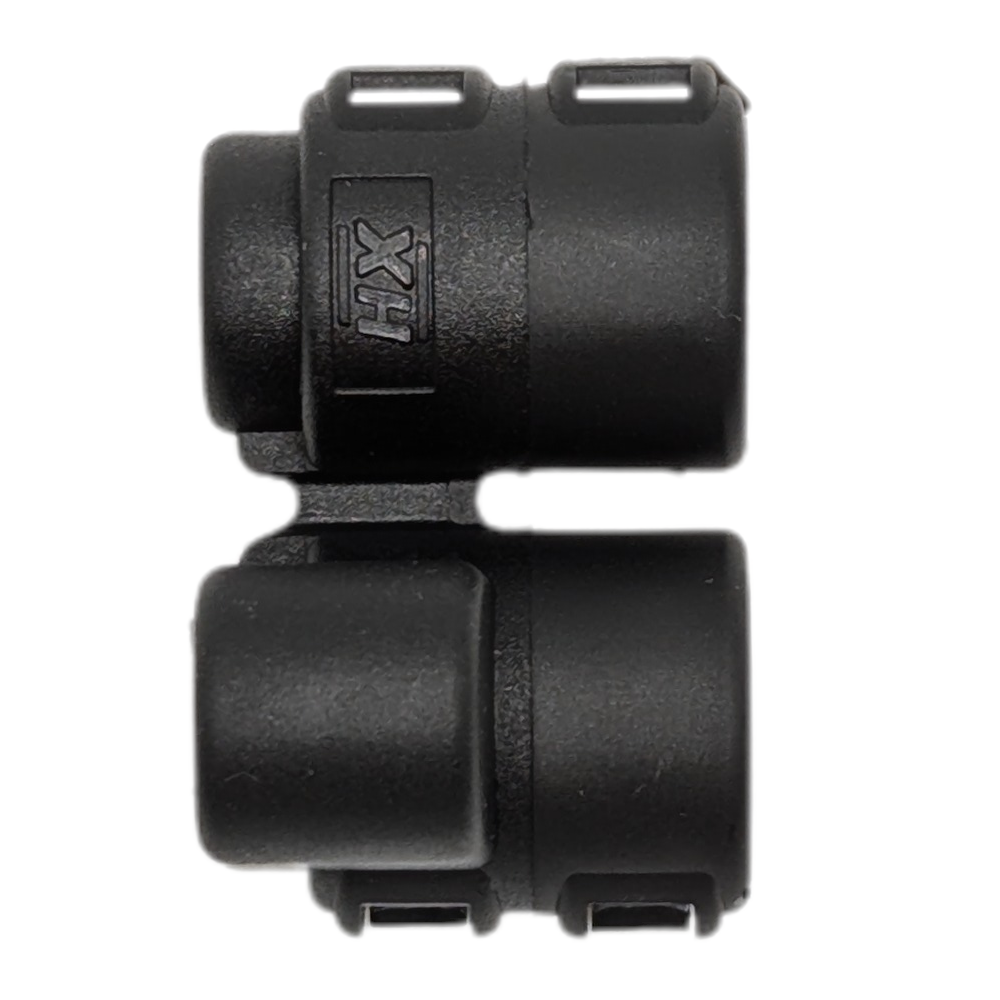

ABB Harnessflex CI12-AS3 Straight Conduit Connector Interface

Straight back shell connector interface for 3-way TE AMP SuperSeal connector, connecting Harnessflex conduit directly to the rear of the connector. Conduit size: NC12/NW10.

Features & benefits:

• Designed to snap together over Harnessflex slit and unslit conduit, maintaining maximum conduit bore.
• CE Mark to the low voltage directive.
• RoHS Compliant to 2011/65/EU.
• Conforms with end of life vehicle directive (ELV) EU200/53/EC.
• Operating Temperature -40 to 120 Degrees Celsius.
• Very High UV Protection.
• IP40 rated.
• Polyamide (Nylon), Black.

Applications include:

• Harness manufacturers.
• Agricultural vehicles.
• Construction vehicles.
• Military vehicles.
• Engine manufacturers.
• Truck & bus manufacturers.
• Tanker & trailer manufacturers.
