Harnessflex CI08-90-DE001 Connector Elbow Interface NC08 Delphi 2 way

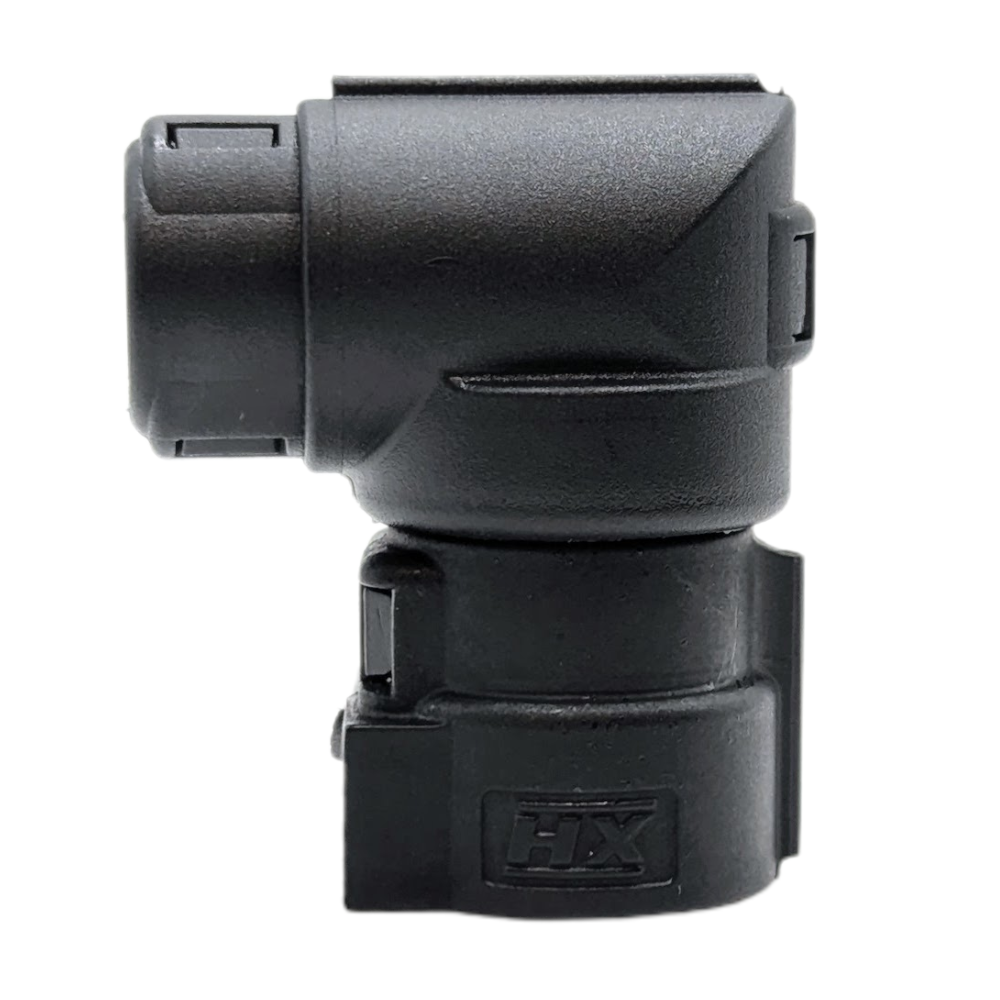

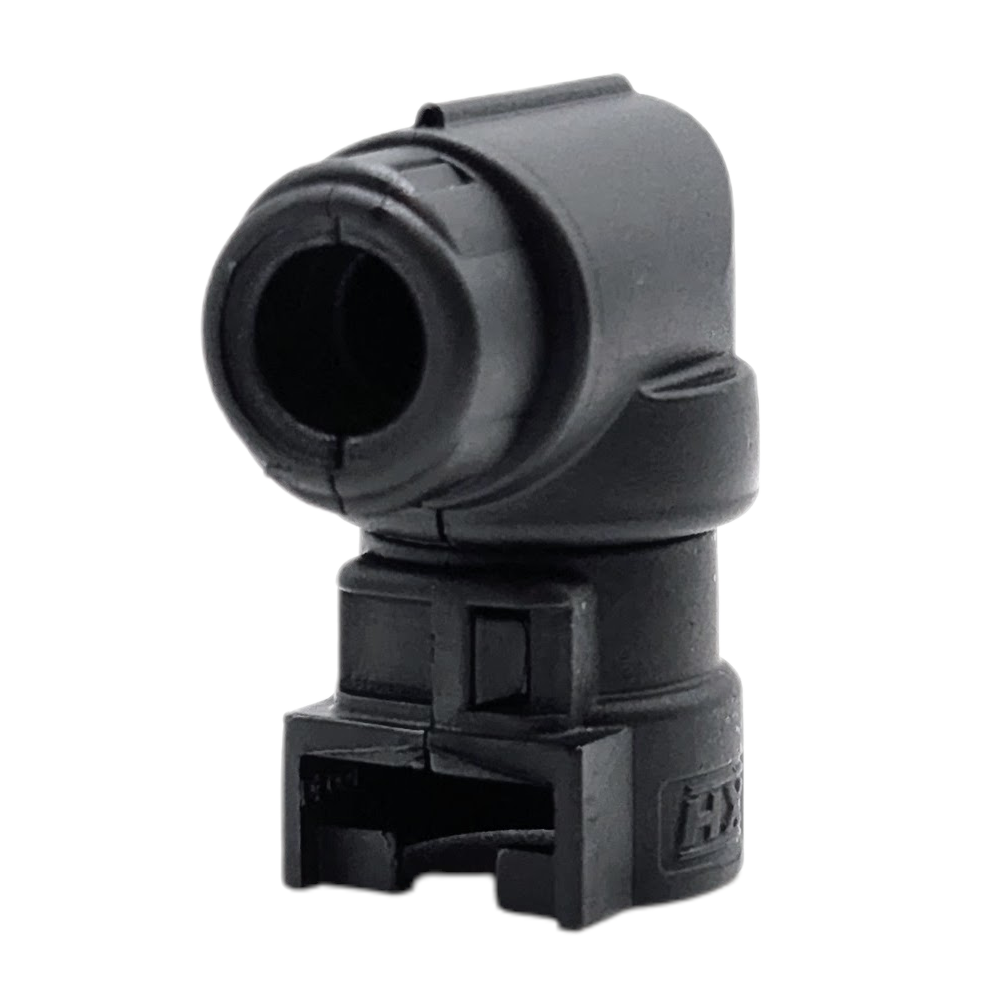

ABB Harnessflex CI08-90-DE001 90° Elbow Conduit Connector Interface

90-degree elbow back shell connector interface for 1-way Aptiv/Delphi DE-001 connector, allowing conduit to exit at a right angle to the connector. Conduit size: NC08/NW7.5.

Features & benefits:

• Designed to snap together over Harnessflex slit and unslit conduit, maintaining maximum conduit bore.
• ABB Harnessflex CI08-90-DE001 conduit to Delphi 2 way connector hinged elbow interface adaptor.

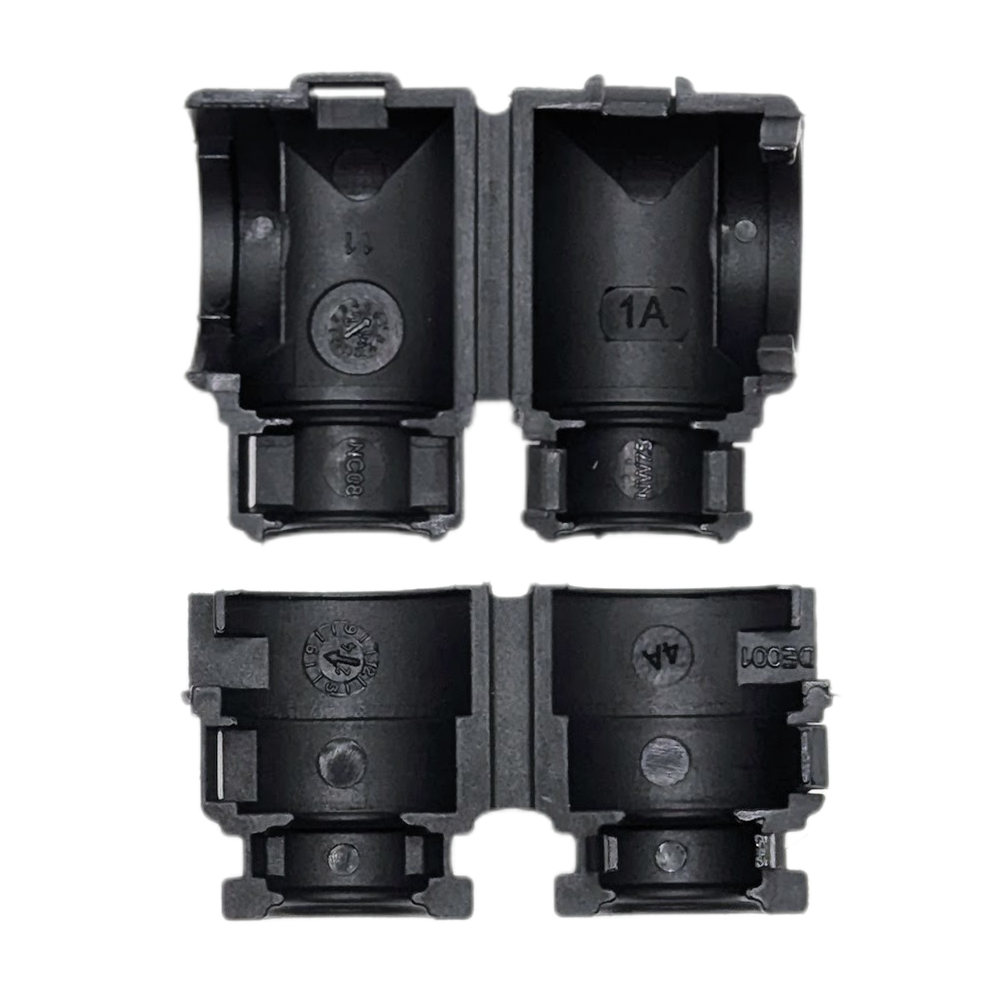

• Item consists of two parts; 90deg elbow and CI08-DE001 connector back shell which snaps inside the elbow.
• CE Mark to the low voltage directive.
• RoHS Compliant to 2011/65/EU.
• Conforms with end of life vehicle directive (ELV) EU200/53/EC.
• Operating Temperature -40 to 120 Degrees Celsius.
• Very High UV Protection.
• IP40 rated.
• Polyamide (Nylon), Black.

Applications include:

• Harness manufacturers.
• Agricultural vehicles.
• Construction vehicles.
• Military vehicles.
• Engine manufacturers.
• Truck & bus manufacturers.
• Tanker & trailer manufacturers.
