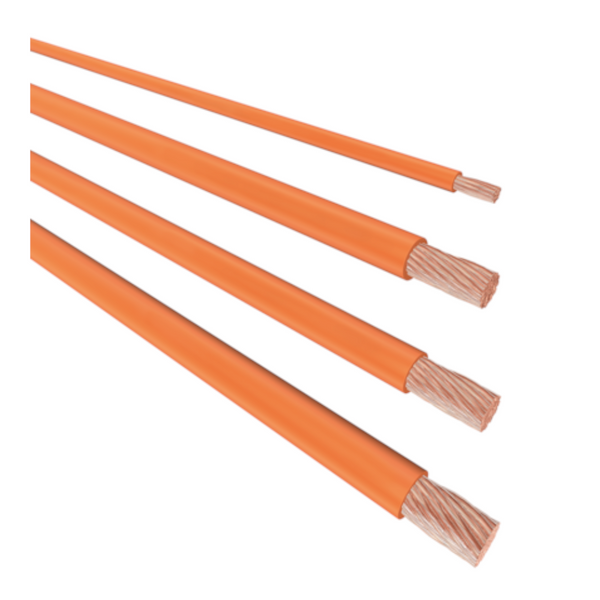

Coroflex FHL2G (9-2652) single core un-shielded 25.0mm²

Coroflex FHL2G (9-2652) – Single-Core Un-Shielded, 25.0 mm²

Features & Benefits:

• Single-core, un-shielded high-voltage cable designed for e-mobility, battery systems, and electric powertrain integration.
• Conductor cross-section: 25.0 mm²
  Rated voltage: 600 V AC / 1000 V DC (typical for HV applications).
• Temperature class: T180 (–40 °C to +180 °C).
• Silicone-rubber insulation and outer sheath provide high flexibility, thermal stability, and resistance to automotive fluids.
• Lightweight un-shielded design ideal for internal HV routing where EMC shielding is unnecessary or handled at system level.
• Low DC conductor resistance optimised for high-current HV battery and inverter connections.
• Suitable for compact, high-power interconnects in harsh automotive and industrial e-mobility environments.

Applications:

• Electric vehicles (EV), hybrid, and battery-electric platforms.
• High-voltage interconnects such as battery → junction box → inverter.
• Internal HV wiring looms where system-level shielding is already implemented.
• Off-highway, commercial, industrial, and marine e-mobility systems.
• High-power DC circuits requiring flexible T180-rated insulation

Price quoted is per meter length. If out of stock, please contact us for alternative options to this cable.
