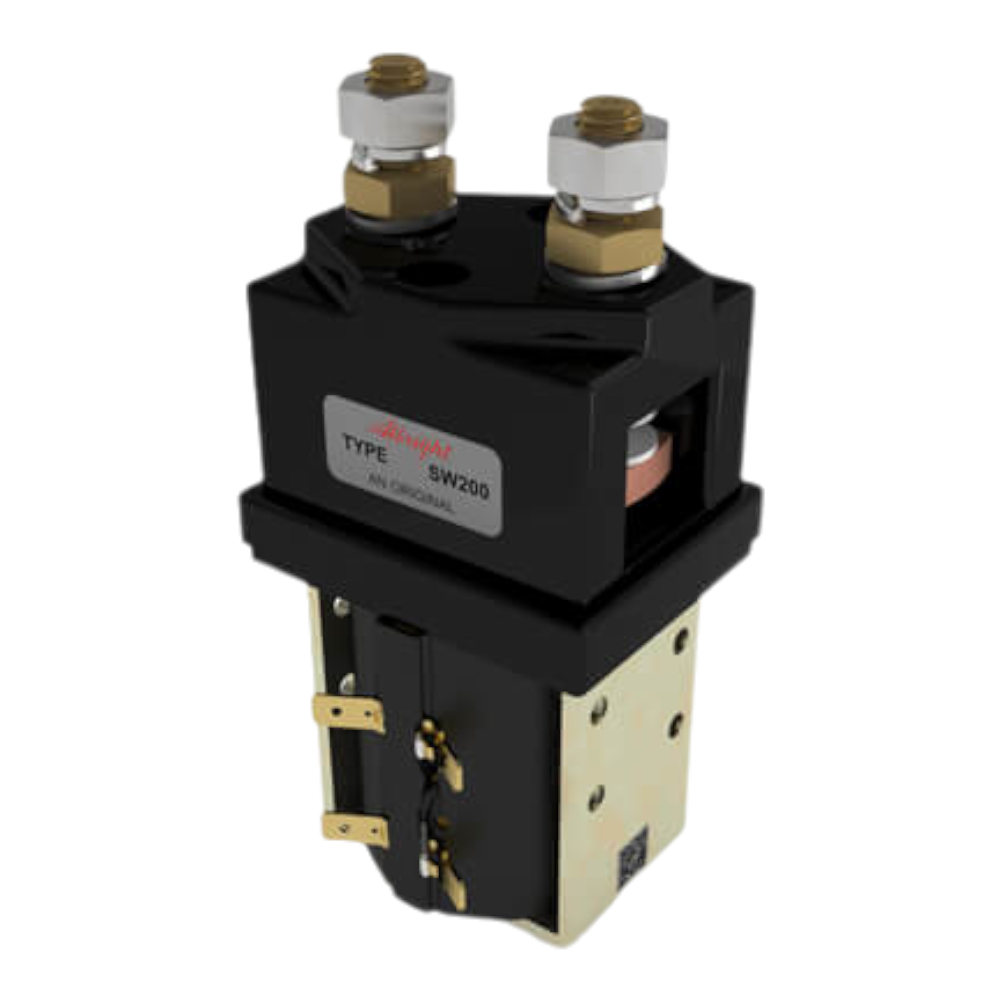

Albright SW200C-1506 24V Contactor, Aux: Mirrored Auxiliary, Continuous duty

The Albright SW200C-1506 is a 24V single pole single throw DC contactor from Albright's SW200 series, fitted with a mirrored auxiliary switch — a centre common terminal wired to both a normally open and a normally closed contact, allowing the contactor's main state to be monitored or interlocked from a single auxiliary block.

Designed for direct current loads such as motors used in electric vehicles, industrial trucks, and airport tractors, the SW200 is suitable for both interrupted and uninterrupted switching of resistive, capacitive, and inductive loads. The main contacts are double-breaking with silver alloy tips, giving weld resistance, hard wear resistance, and excellent conductivity, while the coil is continuously rated for reliable, sustained operation.

Features & Benefits:

• Single pole, single throw, normally open main contacts rated at 250A interrupted / 400A uninterrupted
• 24V DC continuously-rated coil, drawing approximately 18W coil power
• Mirrored auxiliary switch fitted — common, NO, and NC contacts for status monitoring or safety interlocking
• Double-breaking main contacts with silver alloy tips, weld resistant and hard wearing
• M10 stud main terminals and 6.3 mm spade coil connections
• Maximum recommended contact voltage of 96V DC
• Rated fault current breaking capacity of 1500A at 96V DC (5ms, per UL583)
• Can be mounted horizontally or vertically via M5 tapped holes or brackets

Applications include:

• EV and HV battery isolation and main contactor duty
• Industrial and off-highway vehicles
• Marine and aviation power systems
• Robotics and autonomous vehicle platforms
• Agricultural and low-volume OEM machinery
