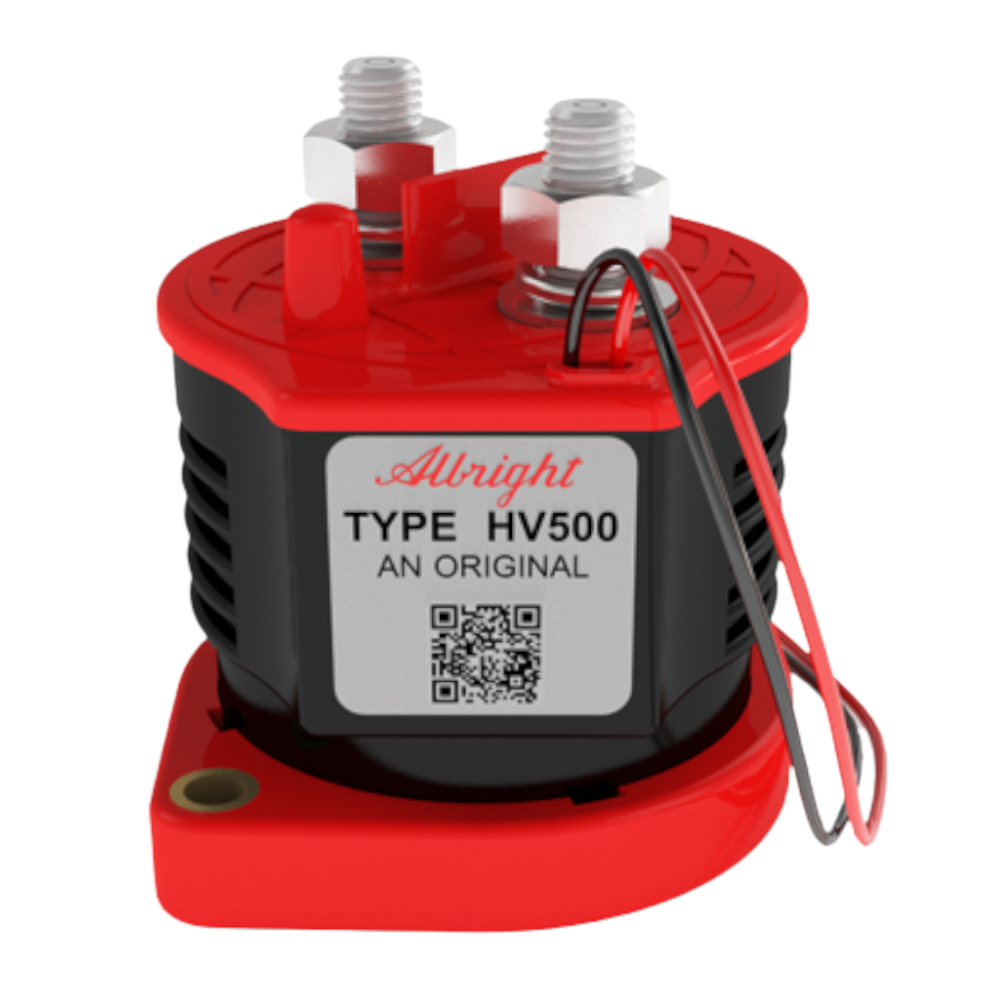

Albright HV500AF-25 24V Contactor, Aux: Normally open, Intermittent duty

The Albright High Voltage series are directly compatible with existing contactors within the market. Albright have over 70 years’ experience of designing contactors for the most demanding applications.

Higher D.C. voltage requirements are an increasing necessity in today’s world. In a field that requires innovation and cost efficiency, Albright has extended their comprehensive Contactor range to include voltages up to 1000 volts and full hermetic sealing

Features & benefits:

• Hermetically Sealed.
• Normally open contacts, single pole, single throw.
• Rated Contact Voltage 12V – 1000V D.C.
• Thermal Current Rating Interrupted: 250A Uninterrupted: 500A.
• Non-polarity sensitive contacts – will allow for bi-directional charging, regenerative braking.
• 24V intermittent duty coil.
• Normally open auxiliary switch (white flying leads).
• Coil Reverse Polarity Protection.
• Flying coil leads.
• M8x15 threaded studs.
• Adjustable bracket allows contactor body to be rotated for ease of alignment with existing mounting holes and power cables.

Applications include:

• Automotive – Vehicle & rapid D.C. charging. Marine.
• Battery Management Systems, service disconnection.
• Power distribution units.
• Renewable energy switching.
